ACOUSTICS DIAGNOSTICS

NOTE: You can access the DIAGNOSTICS from the Main Menu > Options or In-game by selecting the E6 icon, then select the DIAGNOSTICS option.

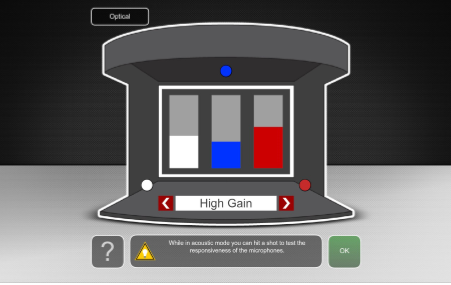

  • Allows you to test and verify connections of the three acoustic ball impact sensors. One is located in the top center of the frame and the other two are located near the floor on the right and left sides of the frame. Each of the bars correspond to an acoustic ball sensor of their same color.


  • Tap each microphone and verify that the corresponding color bar responds. If incorrect, connect the correct mic cables to control box. Do this until all sensors are connected correctly.

If any of the indicator bars do not respond when the ball is hit or tapped, this could indicated one or more of the follow:
1. Microphone is not connected to the cable.
2. Cable is not connected to control box.
3. Microphone is covered.
4. Microphone or cable is defective.
5. You can try swapping microphones to help diagnose if it is a mic or mic cable issue.

  • If you do not have a spare microphone, try another test to help determine what the issue is by swapping one of the working microphones with the non-working to see if it now registers. It is also worth seeing if the non-working mic now registers in its new location. If the working microphone also doesn’t work in the problematic location it would indicate an issue with the microphone cable or its connection to the control box. If the working microphone also works in the problematic location and the problem follows the non-working microphone to its new location that was working before than we know that there is an issue with that microphone and replacement would be needed.

NOTE: For Vista series simulator make sure that your microphones are sitting flush in the sleeves and facing the hitting screen.

  • If one or more sensors is non responsive replace microphones with the extras that were sent with the simulator. Tap sensors to verify that the related indicated bar is reacting, if not or to order addition mics contact www.trugolf.com/shop/
  • To access the OPTICAL DIAGNOSTICS select the OPTICAL button at the top of the screen or click OK to return to E6Golf
