Serial to CAT 5 Pin Out for Trugolf

Serial to CAT 5 Pin Out for Trugolf


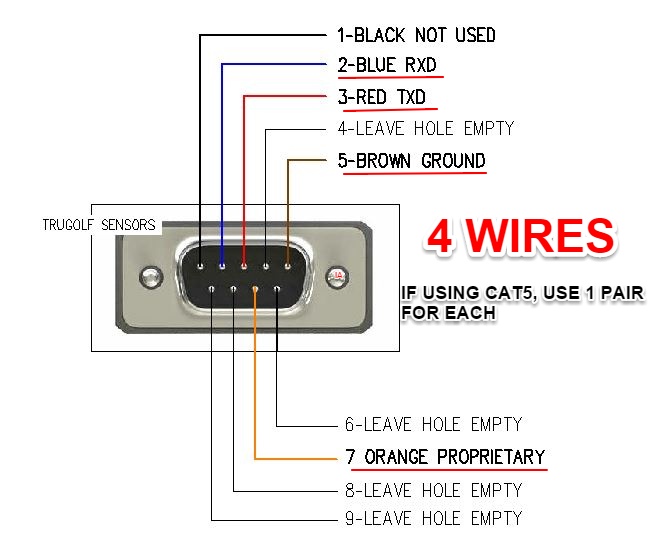

Male

  • Top Row (in order 5-1) Black, Red, Green, Blue, White
  • Bottom Row (in order 9-6) none, Orange, Yellow, Brown

Female

  • Top Row (in order 1-5) White, Blue, Green, Red Black
  • Bottom row (in order 6-9) Brown, Yellow, Orange, None
