Club camera light won't turn on for the TruFlight 2
The light used for the Truflight 2 club camera isn’t turning on or lighting up.

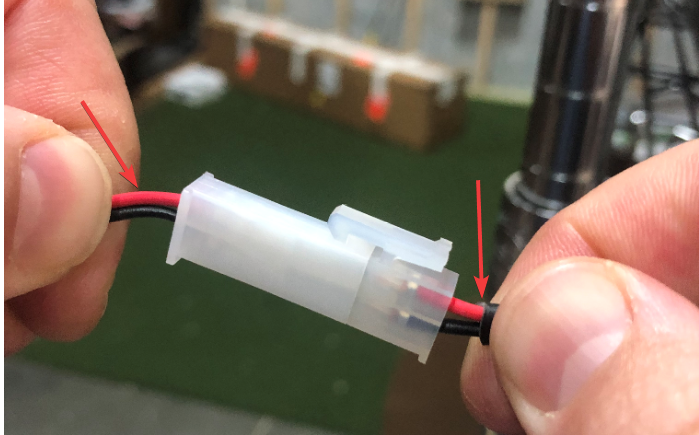

- Verify that the 2 Pin Molex cable from the club camera is securly connected to the power plug for the 2 Pin Molex cable. To do this you will want to press inward towards the connector on both ends by holding onto the wires.
Note:
The 6’ USB 3.0 Extension and 2 Pin Molex cable should be run from the Ball camera Enclosure to the Club Head Camera Enclosure
• USB 3.0 Cable will plug into the Club Head Camera
• To plug in the 2 Pin Molex cable, remove the endcap of the enclosure and slide out the lighting cover 3” to reveal the power plug for the 2 Pin Molex cable.
• Insert the 2 Pin Molex power cable through the hole on endcap facing the impact screen.
• Insert the 2 Pin Molex power cable into the power plug
- Verify that there is power to the club camera light by using a volt meter. If you are using a a volt meter that requires a manual max voltage setting but sure that it is set to 200v so that the voltage can be read.
