Truflight Setup utility not loading.

IF the Truflight is not being detected by the computer you will not be able to launch the Truflight setup configuration utility.

Here is what you need to check.

• Is the Usb physical plugged into the computer
• Does the computer recognize the drivers for the cameras?

To check the Truflight drivers

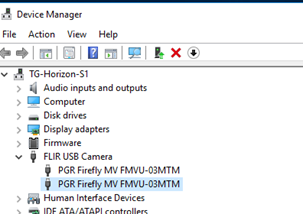

1. Copy “Device Manager “into the window search box
2. You should see “FLIR USB Camera”




3. Click the drop-down arrow and you should see “PGR Firefly MV FMVU-03MTM” if the proper drivers are installed.
4. If not, you will need to install the PGR Firefly MV FMVU-03MTM drivers.
Use this link for information on how to install the driver

https://trugolf.zohodesk.com/portal/en/kb/articles/tf1-truflight-1-how-to-install-the-pgr-firefly-mv-fmvu-03mtm-drivers
