Issue: Soccer and other games seem accurate but Pitching, QB or Hoops do not seem to be as accurate, the shot does not go where the ball hit.

Resolution: Each of these games has a separate calibration. Follow the information below to test then calibrate in each of these games as needed.

Note: The MultiSport still needs to be calibrated through Trudepth utility before calibrating inside the games. If you see warning about no CFG existing please calibrate there first.

How to Test Calibration

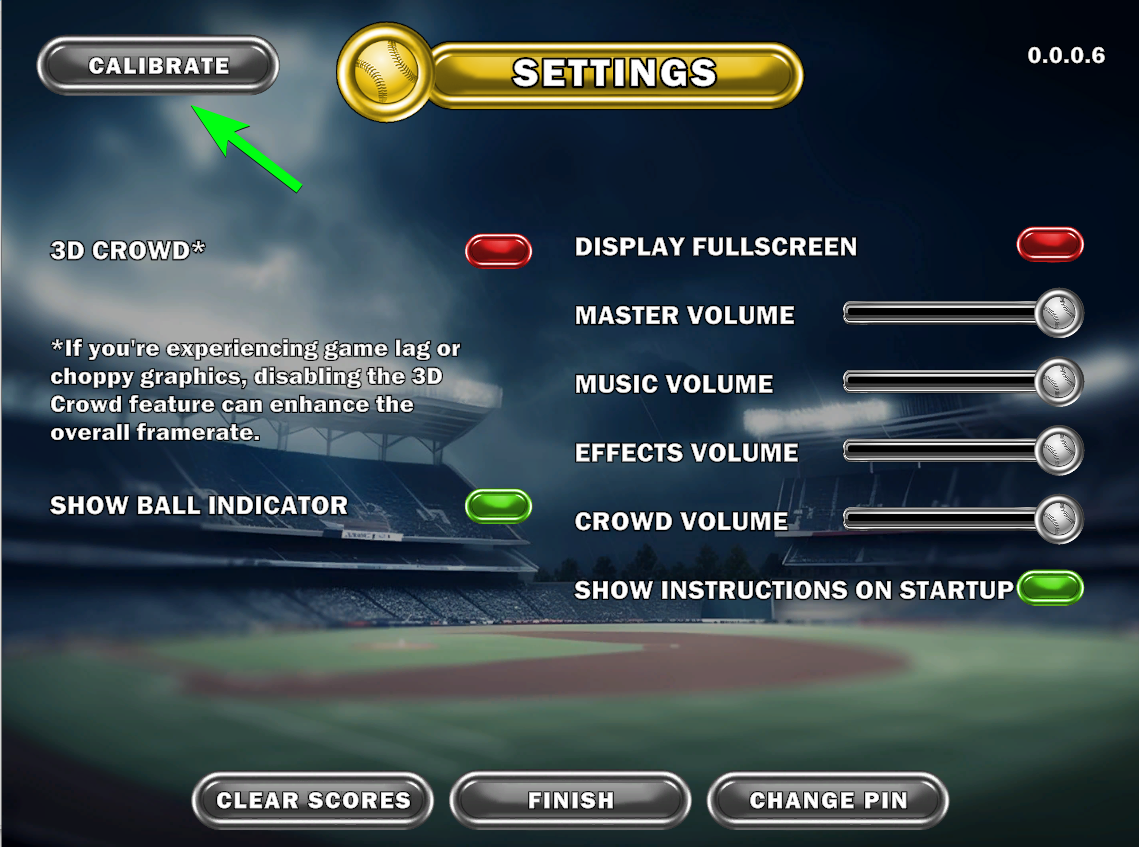

Calibration tool is found in the Settings Menu (In each of these Games)

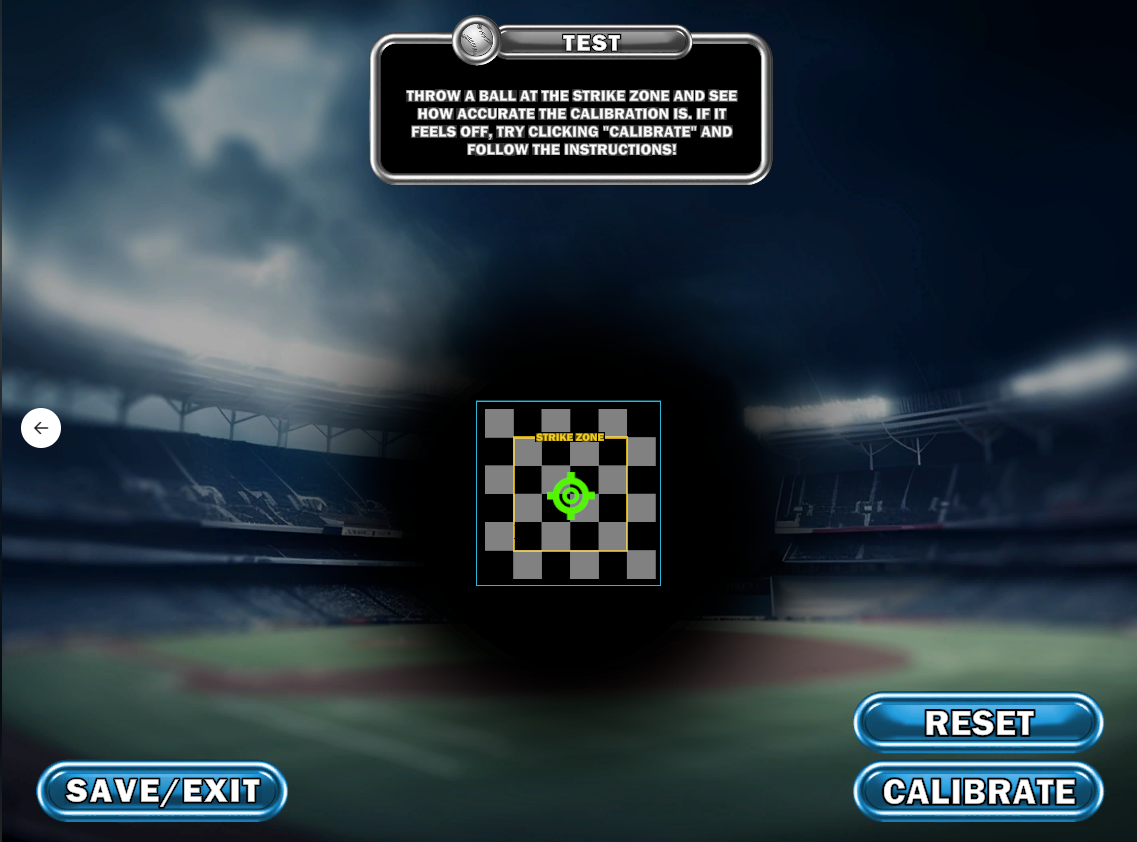

Once the screen is up, you can throw at will.
Every shot will appear on the screen where we think the ball impacted the screen.
(This appears as a yellow baseball.)
For First Time Testing, press “RESET”---this defaults the system to the raw ISC calibration (no game offset/adjustments)

  • If where the ball actually hits the screen, is close to where the ISC believes the ball struck the screen…

    • Then the calibration is pretty good!!! (NOTE: it’s never going to be “perfect”)

    • Consider selecting CALIBRATE to finetune it a little for the game. (Calculating a shot offset)

  • If it’s way off---if the actual shot and the reported shot locations are very off

    • Hit RESET and Try Again

    • If it’s still way off, you should exit the application and calibrate the ISC again.

If you choose, you could use this screen to see how the overall calibration of the ISC is working.
You will notice that calibration is strongest in the center, and lesser on the fringes.

Settings Menu
Calibration Tool

How to Calibrate (inside the game, using INSIDE HEAT[Pitching])
This special Calibration screen will ONLY effect the game you are calibrating and will NOT translate to the other games.

RESET:
This option clears any INSIDE HEAT Adjustments and reverts the system back to raw ISC calibration.

  • Any previous adjustments are lost when RESET is selected.
    This makes this button very powerful, as you can test the raw ISC calibration quality.


CALIBRATE:
Until you actually select CALIBRATE…you are just testing.
Selecting CALIBRATE

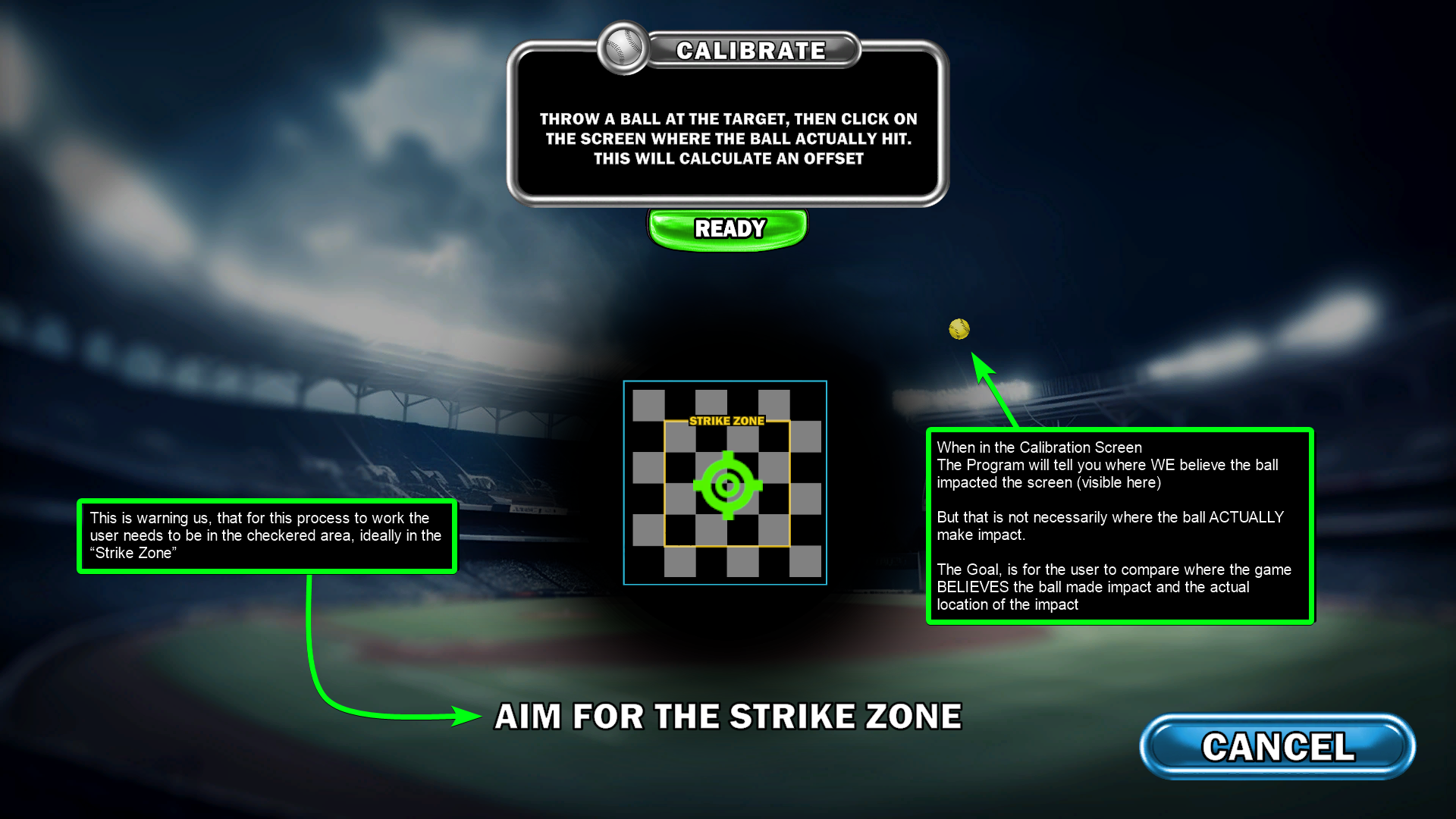

  • Throw the ball into the Checkerboard Area, ideally in the strike zone.

    • We do not want to calibrate outside the Checkerboard.

      • The program will notify you if you try to.

    • The program will show you where ISC THINKS the ball hit the screen. (with a yellow ball indicator)

  • The user needs to note where the ball ACTUALLY hits the screen.
    (where the physical ball, physically hits the screen)

  • Then, with your mouse (or touchscreen) select where the ball impacted the screen on your display.

    • You only get to click once.

      • If you make a mistake, just Calibrate again (easy)!

  • That will end the calibration….

    • You can cancel out of calibration if you like
      This will preserve whatever calibration you had before you selected CALIBRATE.

So, throw the ball again, and see if you notice an improvement.
You can do this as often as you wish.


  • Once you have something that is accurate, That offset will be stored permanently or until you calibrate again.


Save/Exit:

Everything is saved when you exit.

Things to keep in mind:

  • Always throw/kick/whatever the ball hard

    • The ISC will not register a lob very well at all.

  • There will never be perfect shot registration---these are intended to be fun games, not a simulator.
