LBX how to connect to Wi-Fi

Issue: How do I connect the Launch box to My Device (PC OR IOS)

You need to make sure you are in Online Mode first.

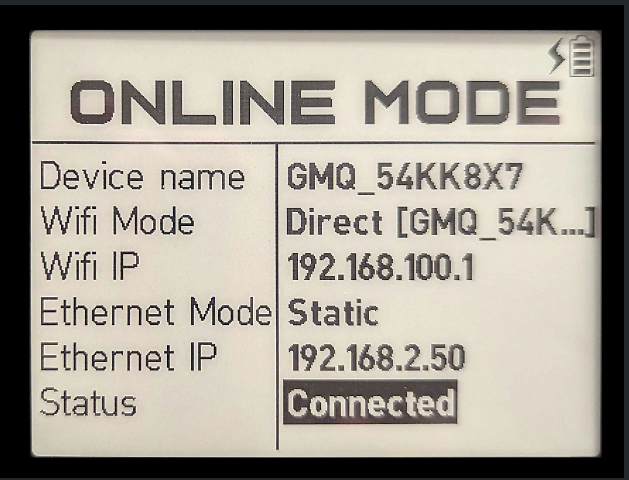

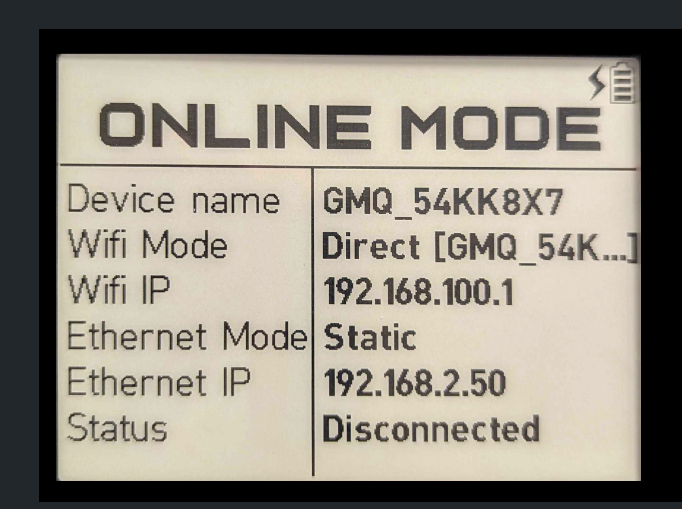

Note: The LBX will not say connected until you are connected in game. For all LBX Devices the Default Password is "GMQ@123456".
You can also find this information in the LBX Manual.

For PC:

1. Make sure the PC has a wireless connection (You may need more than one if you are not using wired connection for internet)

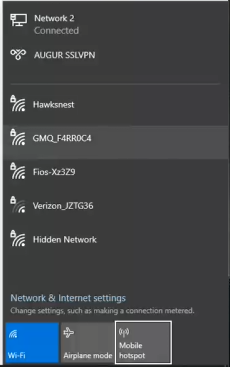

2. Search for the device name in Wi-Fi Connections

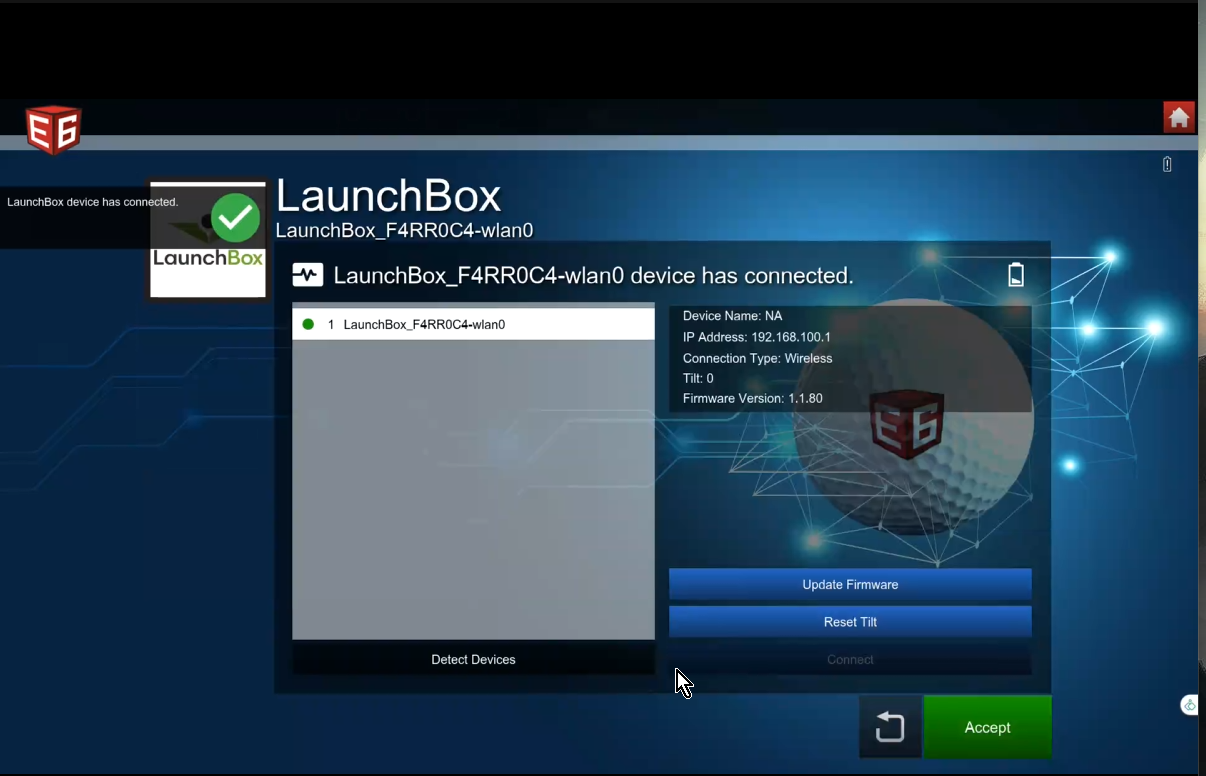

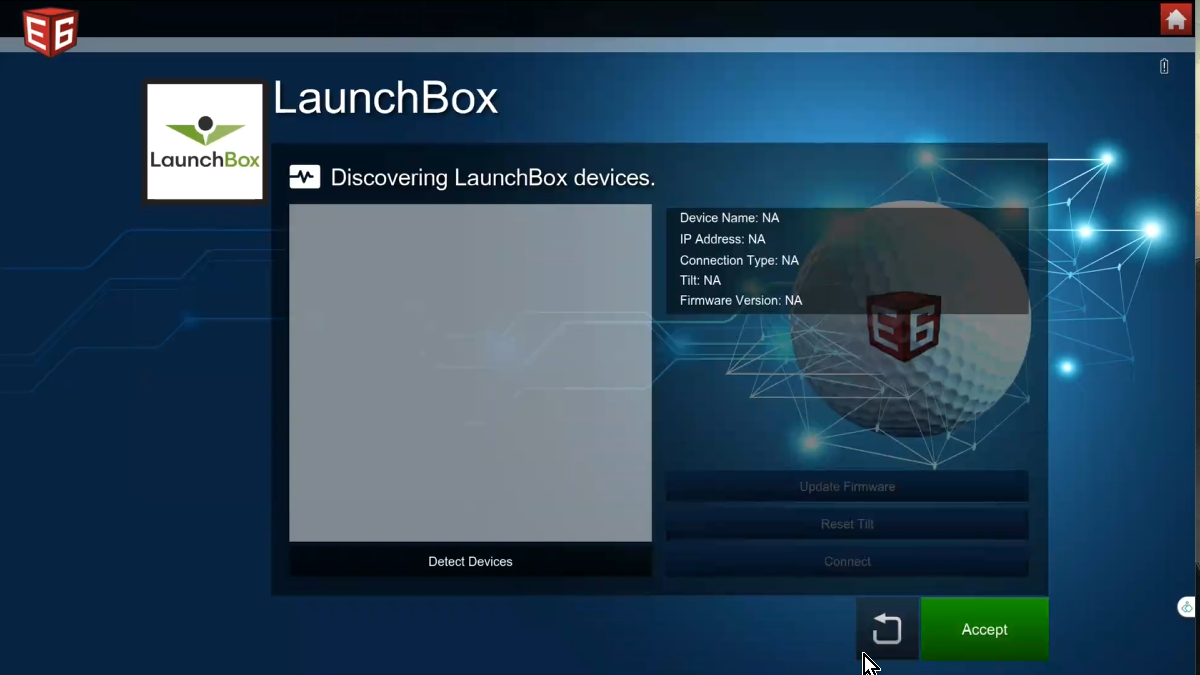

3. Open up E6Connect or E6 Apex and Select the LBX Tracking System and Configure. It will take the device under 60 Seconds to be detected (local results may vary) once detected click on the device name and click connect. When the device is connected in game you will be notified its connected and you will the connection status change on the LBX to connected.

Note: Windows Wi-Fi connection once connected may connected, no internet. This is expected the LBX is not an internet device.

For IOS:

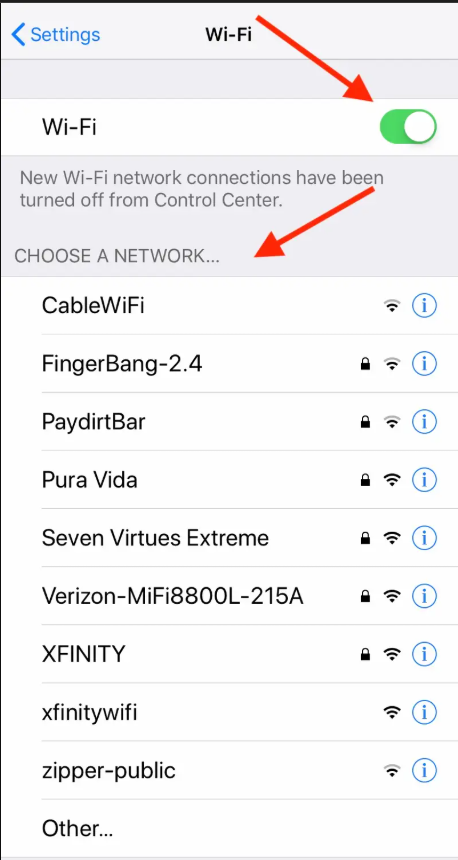

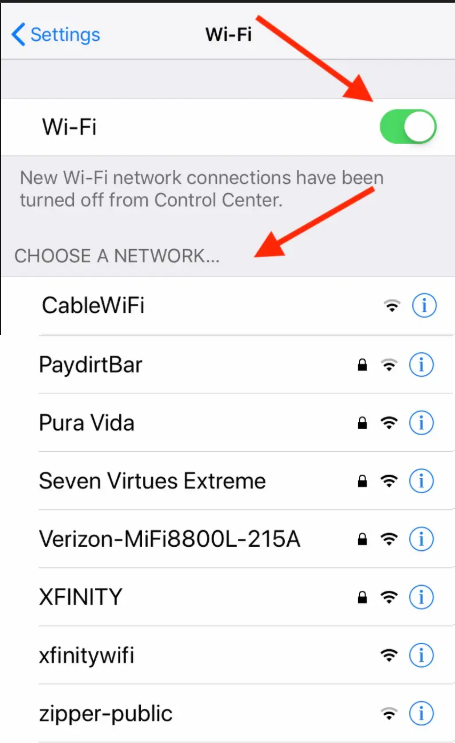

1. Open up Settings >Wi-Fi and select the LBX Device Name

2.  Open up E6Connect Select the LBX Tracking System and Configure (see step 3 for PC, Apex is not available for IOS). It will take the device under 60 Seconds to be detected (local results may vary) once detected click on the device name and click connect. When the device is connected in game you will be notified its connected and you will the connection status change on the LBX to connected.

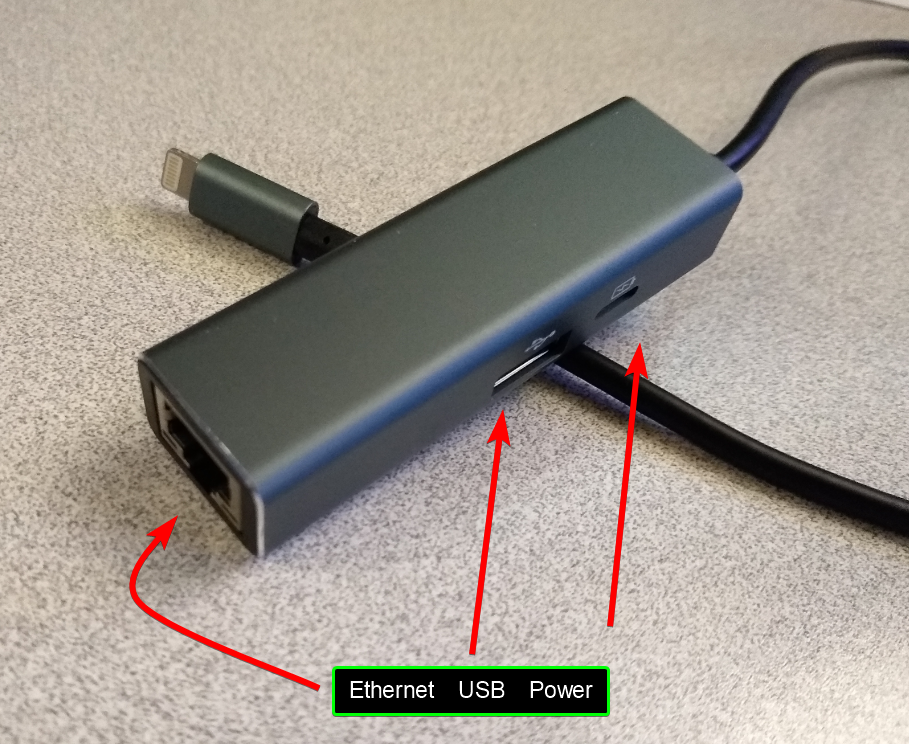

Note: IOS devices natively connect to only 1 Wi-Fi Connection at a time unless you have USB to Ethernet Connection. For E6 Connect this means you will be playing in offline mode.
