Won't connect / connection issues with PC Software for Garmin R10

Won't connect / connection issues with PC Software for Garmin R10

Symptoms

  • You attempt to “Test Connection” in the Garmin R10 Software, but it continues to Fail
  • You select to “Start Session” and run the PC application in the Garmin R10 Software, but the device never connects properly

Things to Check

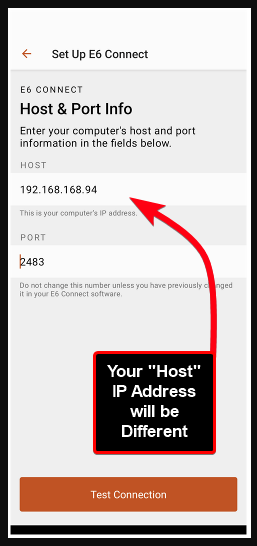

When on the “Host & Port Info” and/or the “Test Connection” Screen of the Android App

  • Start E6 CONNECT

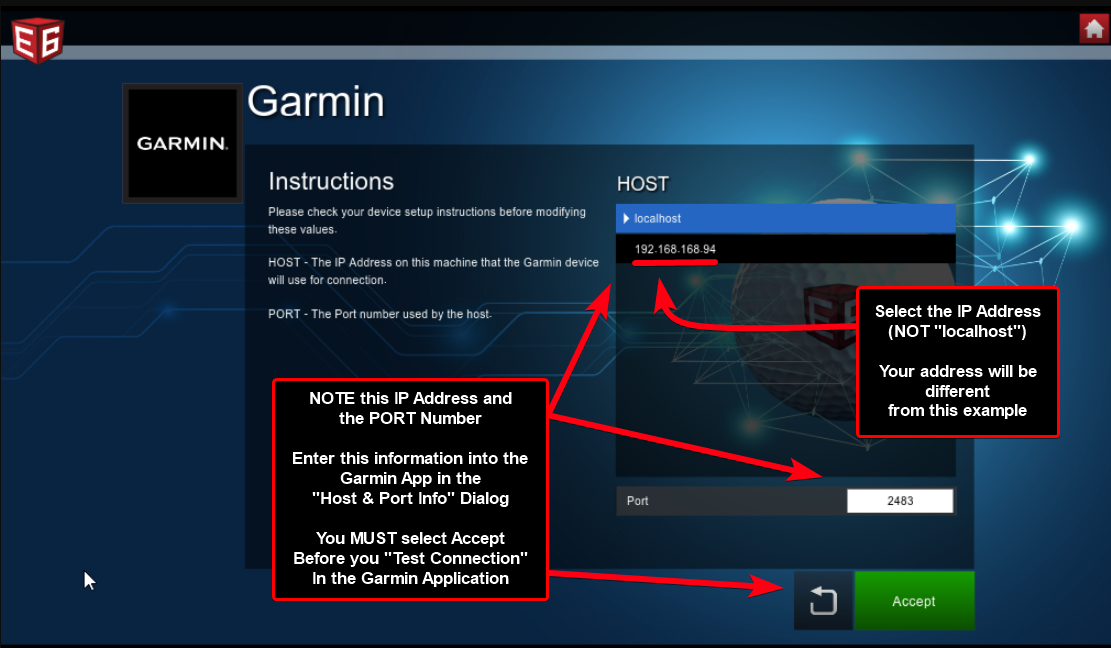

  • In E6 CONNECT: Go To: SETTINGS > SIMULATOR > TRACKING SYSTEM > GARMIN > CONFIGURE
  • Select the IP Address Under HOST (NOT local) by clicking on the IP address number.
  • Put that information, the IP Address and Port Setting into the Garmin Test Connection Screen
  • You MUST accept the Settings in E6 CONNECT
  • and NOW....test your connection in the Garmin App.




Be sure to START SESSION In the Garmin App before starting play in E6 CONNECT

NOTES:

  • For HOST, select the IP Address for your PC (It will be a number in this format: XXX.XXX.XXX.XX)
  • The Default PORT Number you should be using is: 2483 (unless otherwise indicated by Garmin)

Additionally

  • Must have Android 7.0 or later
  • Your PC and Android/iOS Device MUST be on the Same Network. (contact your IT Professional for help)
  • If you are using a VPN--you are on your own. There is no known work-around.
  • If you are on a Business Computer and/or a Domain, you may need to speak with your IT department.

  • You may need to remove firewalls temporarily, to see if they interfere with connectivity.
  • It’s been determined that a network profile set to “Public” can prevented the desktop device from connecting to the R10 via WiFi. Try switching network profile setting to “Private”.
