Projector Light Status for Epson

Projector Light Status for Epson

Projector Light Status

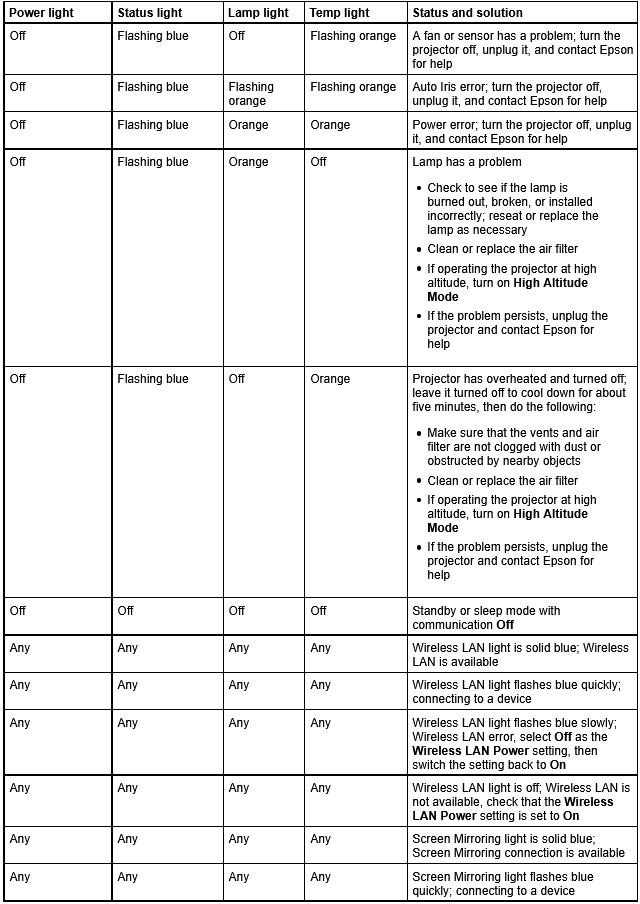

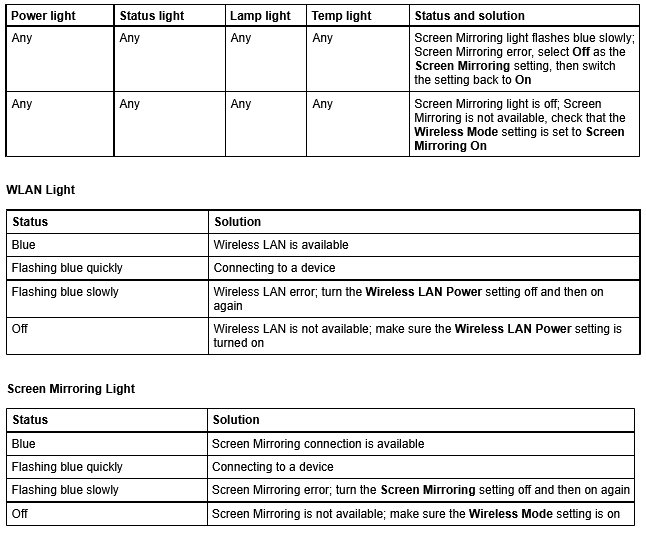

The lights on the projector indicate the projector status and let you know when a problem occurs. Check the status and color of the lights and look for a solution in the table here.

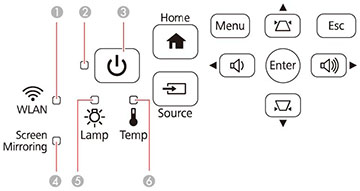

1 WLAN (Wireless LAN) light (PowerLite Home Cinema 2045)
2 Status light
3 Power button/light
4 Screen Mirroring light (PowerLite Home Cinema 2045)
5 Lamp light
6 Temp (temperature) light





Note: If the lights display a pattern not listed in the table above, turn the projector off, unplug it, and contact Epson for help.
